Julldent 075 Zygoma Diamond Drills

Zygoma Diamond Drills
Jull-Dent 075

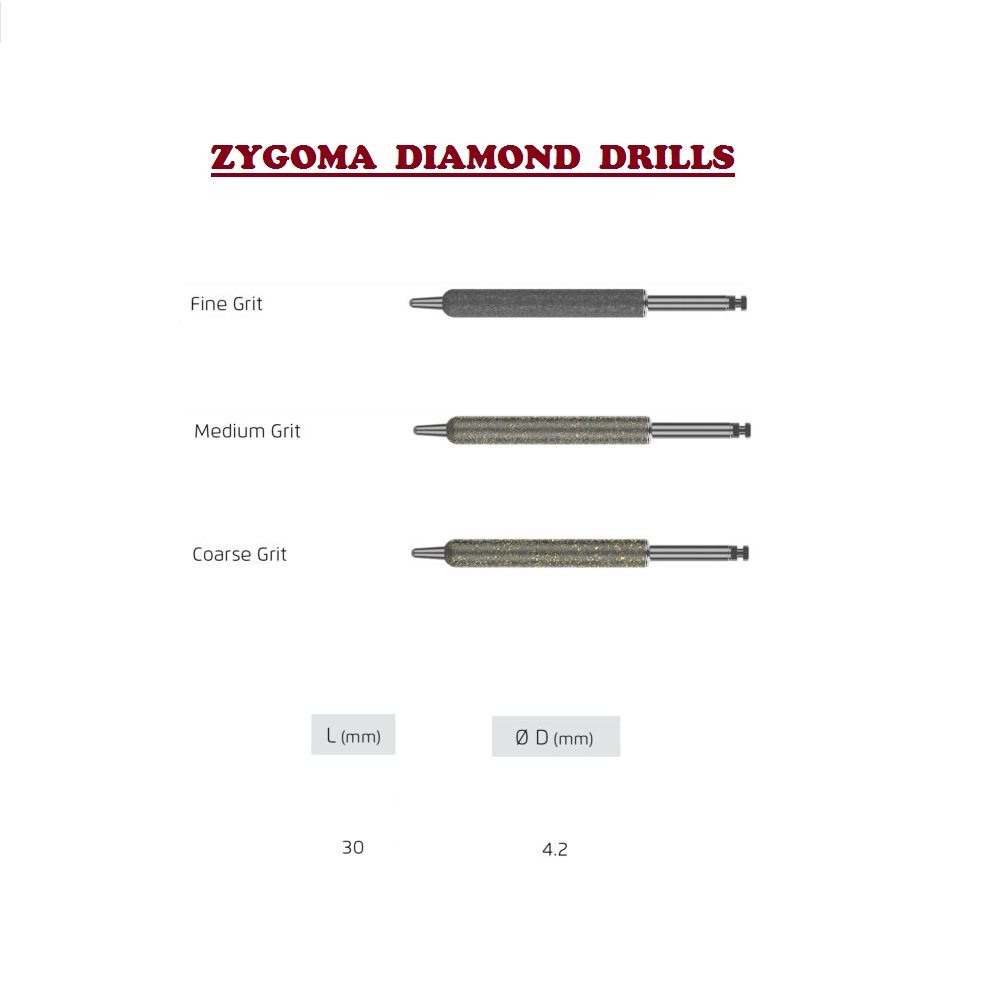

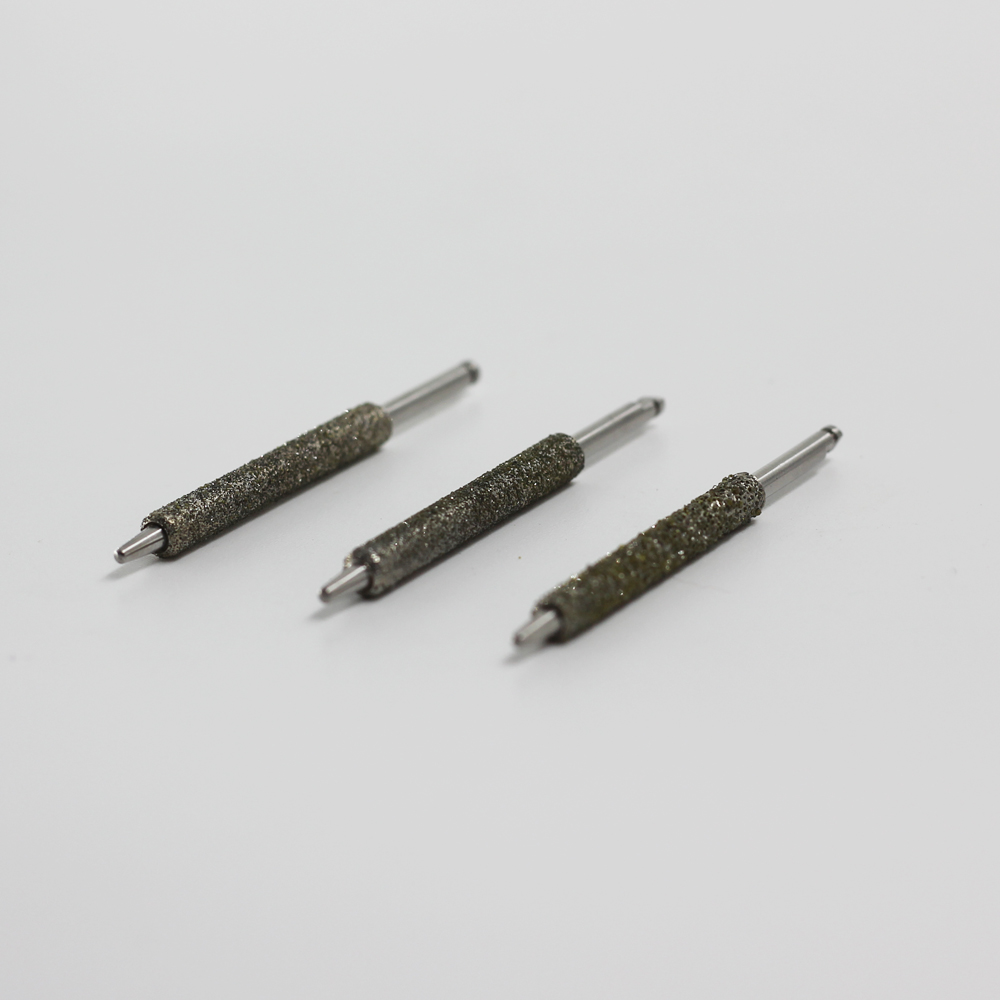

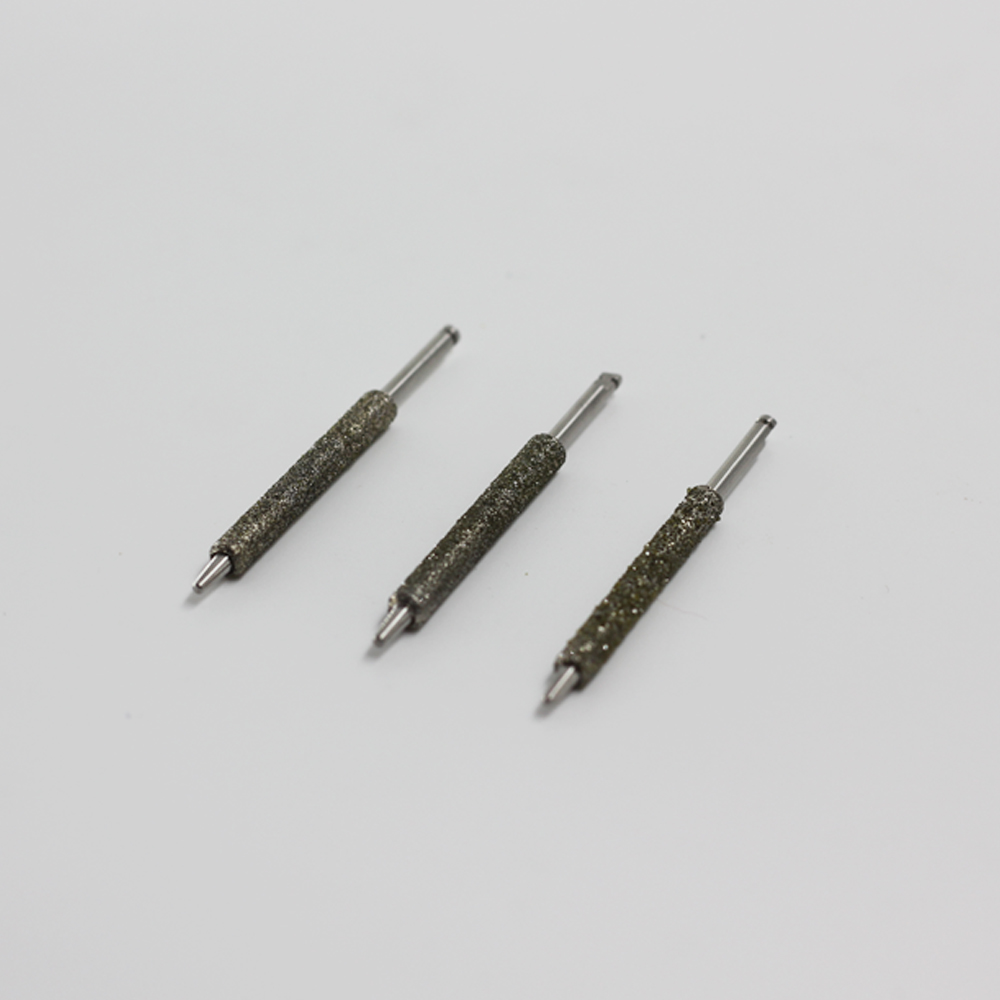

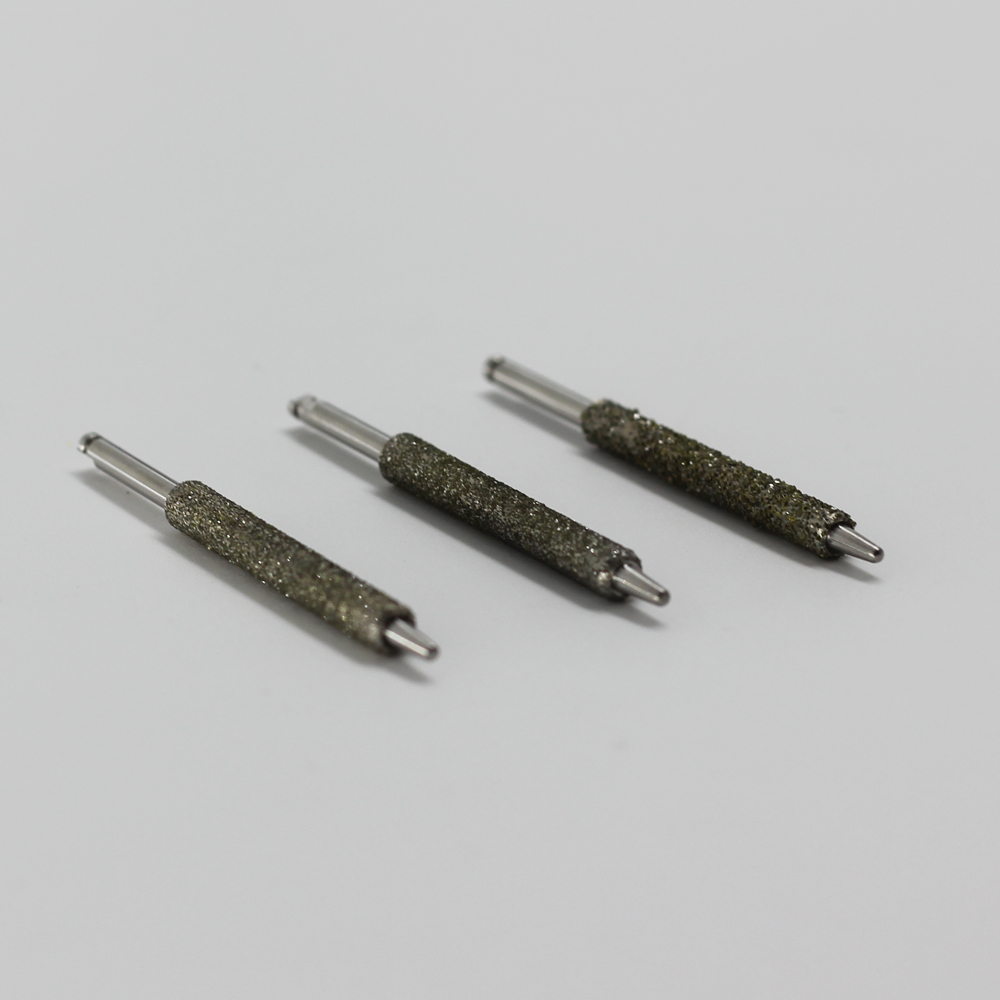

Types-

•  Zygoma Diamond Drill Fine Grit
•  Zygoma Diamond Drill Medium Grit
• Zygoma Diamond Drill Coarse Grit

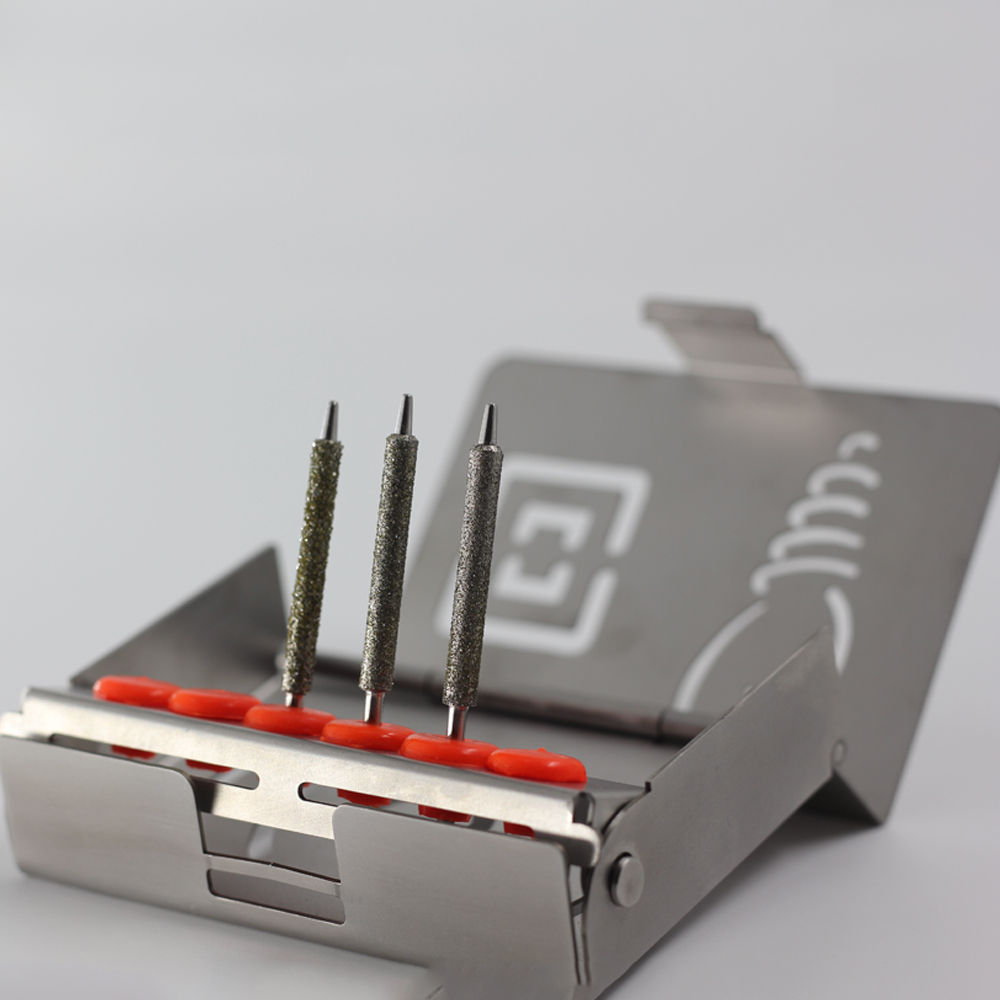

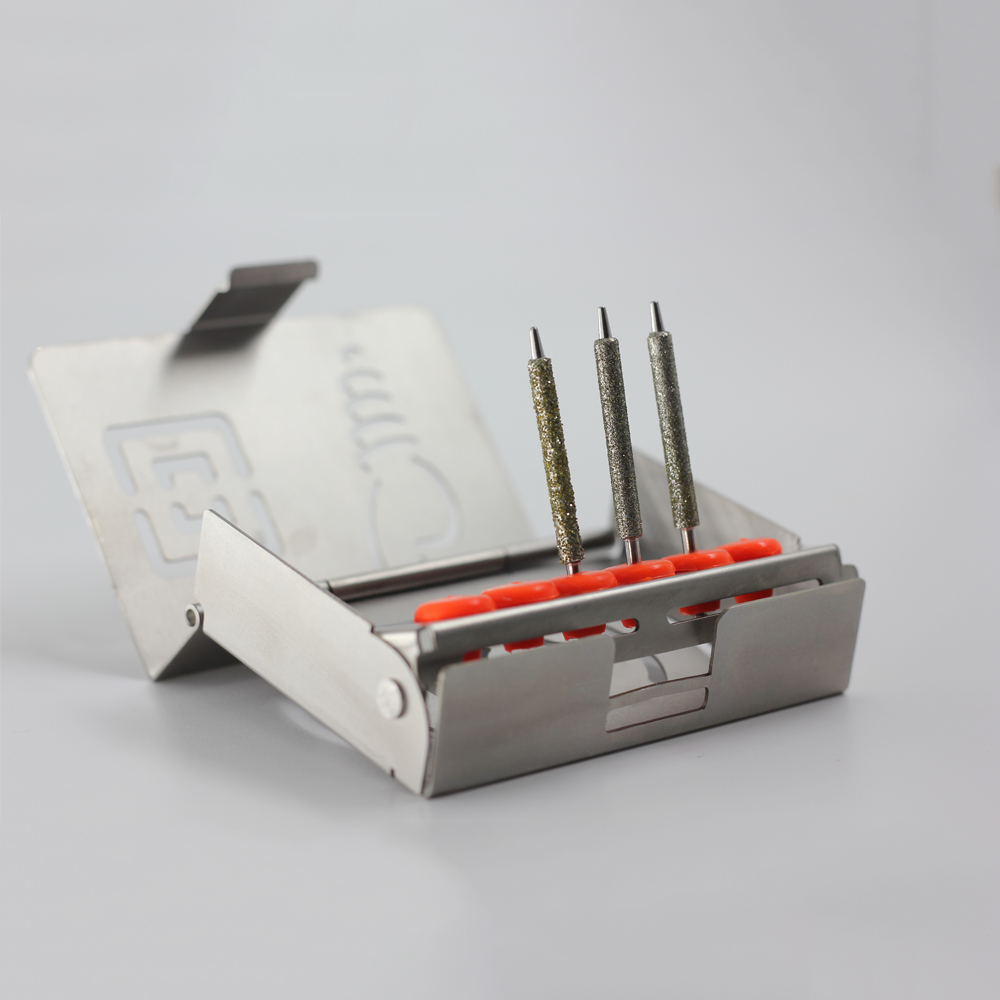

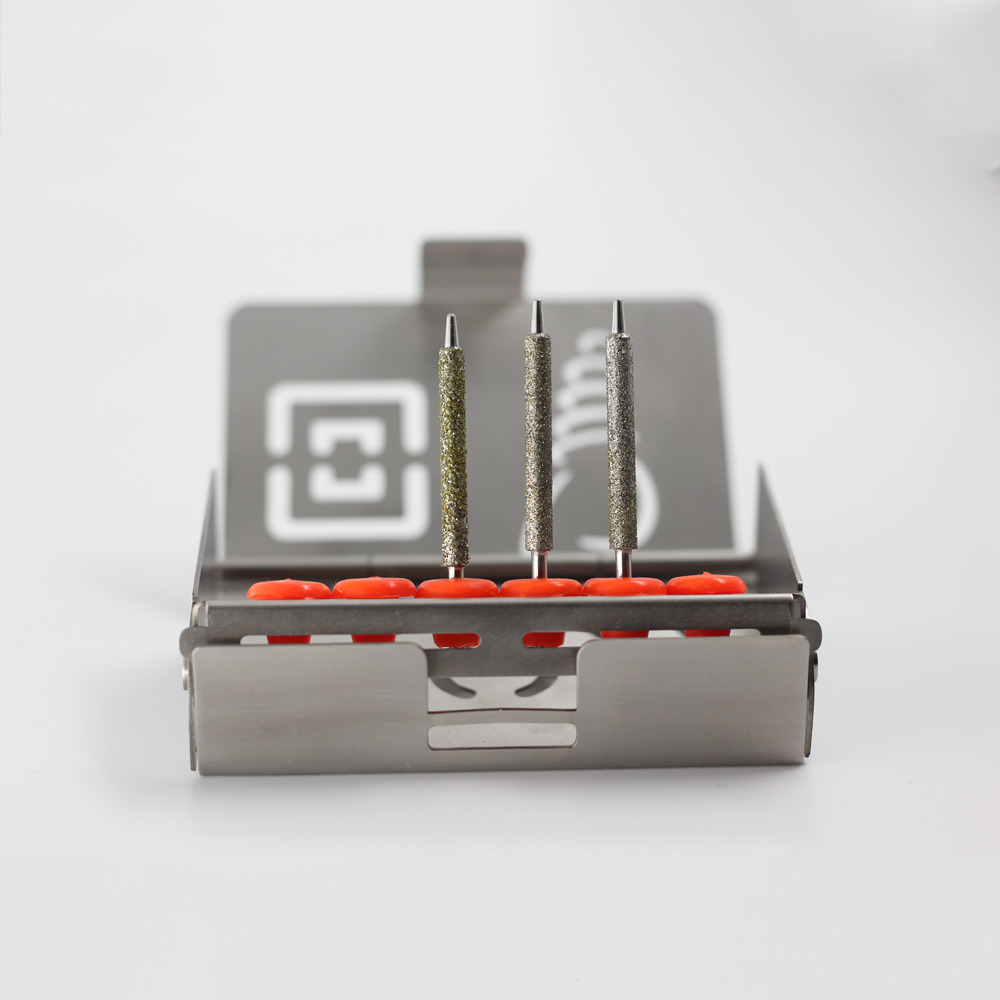

•  Zygoma Diamond Drills Set of 3

Length – 30mm

Diametre – 4.2mm

The implant site preparation can be performed with drills and burs that are mounted on a contra angle handpiece, which allows easier position of zygomatic implants distal to the maxillary second premolar region. After reflection of mucoperiosteal flap, corticitomy of the anterolateral wall of the sinus can be prepared with round diamond bur.

In order to determine the correct intraoral emergence of the zygomatic implant, these holes were then connected, creating grooves by using diamond cylindrical body burs with no working tips and with three different levels of grits (Fine, Medium, Coarse). The conical bur with non working tip provided a valid point of support and fulcrum for the subsequent bone preparation. In fact this procedure, when correctly performed, also protects the integrity of the sinus membrane. Small possible accidental perforations of the sinus mucosa in the region of the zygomatic recess are not of significant importance in terms of sinusitis sequelae.
